Current
▼ Summary

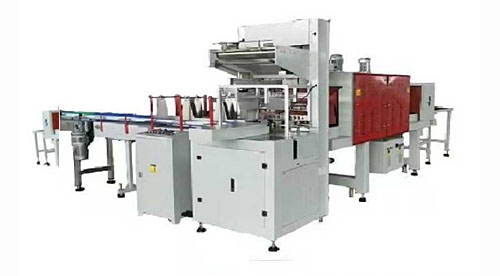

PE film wrapping machine TIE-MB63,as a newly updated packaging equipment, it is designed and manufactured with high efficiency and continuous operation based on the characteristics of heat shrinkable packaging film. It can arrange, set up a single product (such as PET bottle), set up a group, push the bottle and wrap the film, and finally form a collection package by heating shrinkage and cooling. The products after packaging are firm, regular and beautiful in appearance and cost saving.
▼ Features Of Equipment
1. Specially designed for bundle packing of beer, drinks and beverage, fruit juice, bottle water, dairy, condiment and so on with or without bottom support.
2. Unique film layoff mechanism and constant tension film conveyor are adopted, featuring instantaneous film cutting, automatic film connecting and wrapping and higher strength after shrinking packing.
3. Special shaking setting for bottle-dividing,none status for blocking and bearing bottle,smooth transport. Equipped servo motor control system, bottle-feeding, film feeding, film cutting and film wrapping are accurate, synchronous, stable and reliable.
4. The 10-inch LCD color screen has a friendly operation interface,and it is rapid for parameter setting and convenient for human-machine communication, operation and control.
5. Adopting air circulation technology, the shrinkage chamber features rational structure, heat insulation, high precision for temperature control and better packing effects.
6. The self-developed "ultra-thin film conveying system", using PE film is thinner, film loading speed is faster, more stable.
7. The machine can be added print film system, cardboard+film or tray+film packing setting.
▼ Specification Specification
Mode | TIE-MB25 | TIE-MB26 | TIE-MB30 | TIE-MB63 | TIE-MB63D |
Packaging Products | 380ml/500ml/1000ml/2000ml PET Bottles, Glass Bottles, Cans And Other Containers Of Drinking Water, Beverage, Fruit Juice And Other Products. | Corrugated Boxes,Insulation Boxes And Other Box Products. | |||
Collective Packing | 2x3, 3x4, 4x6 (Or Other Package Combinations) | 1x1 | |||
Max Packing Dimensio (mm) | 440*300*330 | 440*300*330 | 460*280*350 | 440*300*330 mm | 440*300*330 |
PE Film Wrapping Machine Size (mm) | 12240*1100*2100 | 14380*1600*2500 | 18145*1530*2500 | 6000*3200*2100 | 8080*1000*181500 |
Shrinkage Furnace Size (mm) | 1800*650*450 | 1800*700*450 | 2500*700*450 | 1800*650*450 | 1800*650*450 |
Packaging Speed | 15-20 | 23 - 26 | 30 Packets/min | 8 - 12 Packets/min | 15 - 18 Packets/min |
Width Of Belt Conveyor | 550 mm | 610 mm | 610 mm | 304 mm | 530 mm |
Power/Voltage | 380V /30kW | 380V/48.5kW | 380V/55kW | 380V /30kW | 380V/22kW |
Air Consumption | 0.3 m3/min | 0.3 m3/min | 0.3 m3/min | 0.5 m3/min | 0.6 m3/min |
Working Air Pressure | 0.6-0.8 Mpa | ||||
Packaging Form | Upper and lower film sealing and cutting wrapping package | One piece heat shrinkable film wrap | One piece heat shrinkable film wrap | Upper and lower film sealing and cutting wrapping package | Upper and lower film sealing and cutting wrapping package |
Packing Material | LDPE | ||||
