▼ Summary

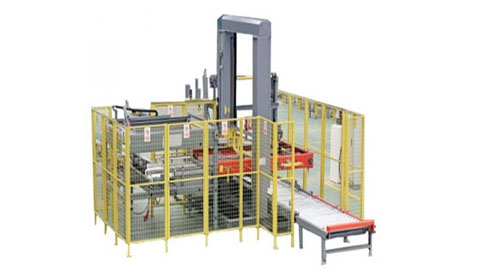

As an important part of the unmanned packing solution in the process of secondary packaging production line, TIE-MD 45 Automatic Robot Palletizer is a high-speed palletizer which designed and manufactured by high-speed parallel industrial robot technology. It has excellent characteristics such as excellent safety performance, fast moving speed, high positioning accuracy and durability of key components.
▼ Features Of Equitment
1. Robot has powerful operation function and high precision operation,which can realize fast packing, palletizing and disassembling.
2. In the production line, the robot palletizing for packing, palletizing and disassembling operations can be flexibly arranged, and two or more lines can be palletized simultaneously, which is the ideal choice for palletizing at the end of the production line.
3. Servo motors, programmable controllers and variable frequency speed controllers adopt first-class products to ensure the reliability and long life of the system hardware.
4. High-quality hardware and specially designed control software are combined to achieve a high degree of automation of the system. The perfect safety interlocking mechanism can provide protection for equipment and operators.
5. Our excellent technology, stable and reliable products and perfect services have improved the level of factory automation in an all-round way.
▼ Technical Specification
Mode | TIE-MD 45 | TIE-MD 40 | TIE-MD 30 | TIE-MD 20 |
Packing Products | products packed in cartons | Cartons, Plastic Boxes, Barrels, Bags Of Many Product | ||
Machine Size | / | 8000*5200*3200 mm | 7300*5300*3200 mm | 3940*3300*3550 mm |
Capacity | / | 40 Cartons/min | 30 Cartons/min | 17-20 Cartons/min |
Power | 220V&380V 50Hz | / | 380V / 10 kW | 380V / 7.5 kW |
Control Voltage | 24V DV | / | / | / |
Work Rate | 6.5 kW | 10 kW | / | / |
Air Consumption | / | 110L/min,5- 6 kg/cm2 | 30L/min,0.4- 0.6 Mpa | |
Compressed Air | 0.5 Mpa | 0.6- 0.8 Mpa | / | / |
Air Consumption | 110 L/ min | / | / | / |
Drive Mode | Servo Motor Drive | / | / | / |
Maximum Stacking Height | / | 1800 mm | 1800 mm | 1600 mm |
Maximum Stacking Weight | / | 1600 kg | 1500 kg | / |
Maximum Pallet Size | / | / | 1300*1100 mm | / |
