▼ Summary
As high efficient packaging equipment, TIE-KX12 Vertical Carton/Box Erecting Machine is designed and manufactured with high automatic operation based on the Ahesive Taping solution. It can pack your products within customized carton sheet. The products after packaging are safely protected and beautiful in appearance.
▼ Features Of Equitment
1. Convenient operation: It is suitable for case erecting and bottom sealing of cartons of various sizes. Just carry out adjustment manually when carton specifications are to be changed. Its operation is simple and convenient.
2. High automation: Automatic case erecting, automatic bottom flap folding, automatic carton bottom sealing. The machine adopts PLC + man-machine control. With convenient operation, simple maintenance and stable performance, it is an indispensable flow line machine for automatic scale production.
3. Safety Performance
(1) The machine parts are precise and durable, with strict structure design, no vibration during running, and stable and reliable running.
(2) It is equipped with blade protective device to avoid accidental injury during operation.
(3) It is additionally mounted with the protection cover to make production safer and packaging more efficient.
4. Unique Design
(1) No stopping during bottom folding. Bottom folding and bottom sealing can be completed during conveying.
(2) The whole process of case sucking, forming, bottom folding and bottom sealing can be completed in 3 seconds.
(3) High-speed, stable, convenient and economic.
5. Energy saving and high efficiency: using this unpacking machine to replace labor, at least 2-3 packers can be reduced, 5-10% consumables can be saved, 30% efficiency can be improved, cost can be greatly saved and efficiency can be improved; More can make the packaging standardization.
▼ Equipment Pictures

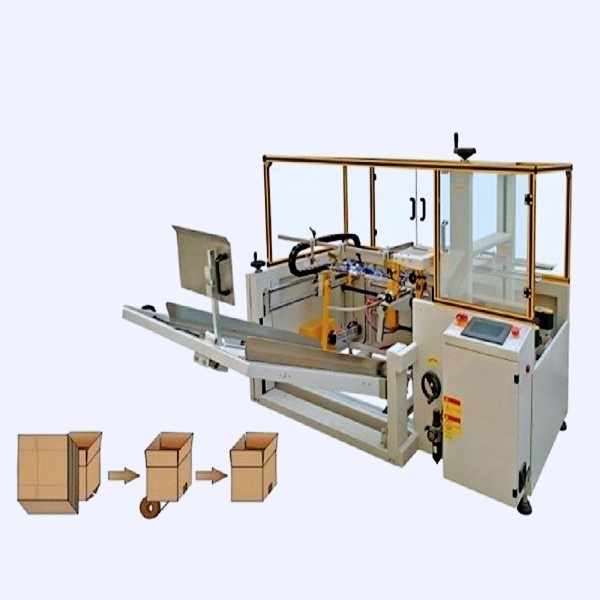

TIE-ZX12 Vertical Carton Erecting Machine

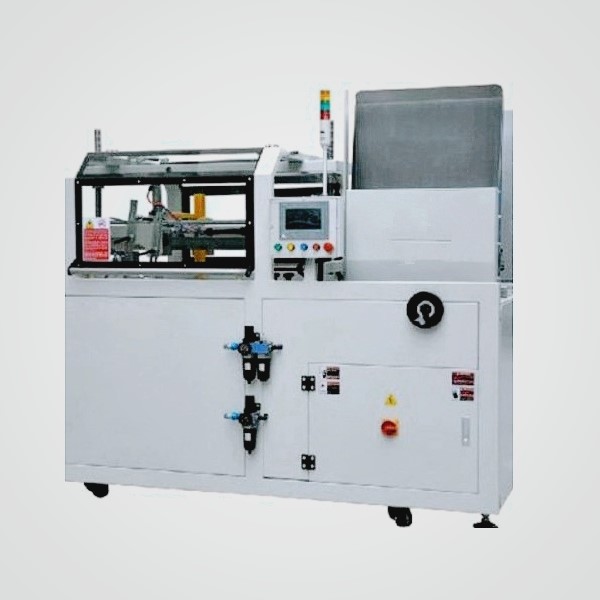

TIE-KX20 Vertical Carton Erecting Machine
▼ Technical Specification
Mode | TIE-KX12 Vertical Carton Erecting Machine | TIE-KX20 Vertical Carton Erecting Machine |
Packaging Product | Cardboard Carton | Cardboard Carton |
Carton Size | L 200-450 * W 150-400 * H 100-340 mm | L 240-510 * W 190-400 * H 120-400 mm |
Machine Size | 2000*1900*1450 mm | 2372*1210*1820 mm |
Packing Speed | 10 - 12 Carton/min | 20 - 50 Carton/min |
Power/Voltage | 220V /200 W | 380V /746 W |
Carton Storage Quantity | About 100 Pieces (1000mm) | About 80 Pieces (800mm) |
Working Air Pressure | 6 kg/m2 Mpa | 5 kg/m2 Mpa |
Air Consumption | 450 NL /min | 300 NL /min |
Packaging For | Unpacking Folding And Sealing (adhesive tape) | Open Box Forming Back Cover (Adhesive Tape Bonding) |
Packing Material | Cardboard | Cardboard |
