▼ Summary
As one of the effective solutions to improve the secondary packing work, TIE-FX Carton Sealer Machine is a carton product sealing equipment with primary automation degree designed and manufactured by adhesive tape. It can be used for cartons of different sizes.
▼ Features Of Equitment
1. It is made of imported parts, electrical parts and pneumatic components by adopting internationally advanced technology.
2. Width and height are adjusted manually according to carton specifications.
3. Automatic carton upper flap folding, automatic tape attaching at the upside and downside, economic, stable and fast.
4. It is equipped with blade protective device to avoid accidental injury during operation.
5. The machine can be used singly or work with the automatic packaging flow line.
6. It is the best choice for enterprises to save costs, enhance production efficiency and realize standard packaging.
▼ Equipment Pictures

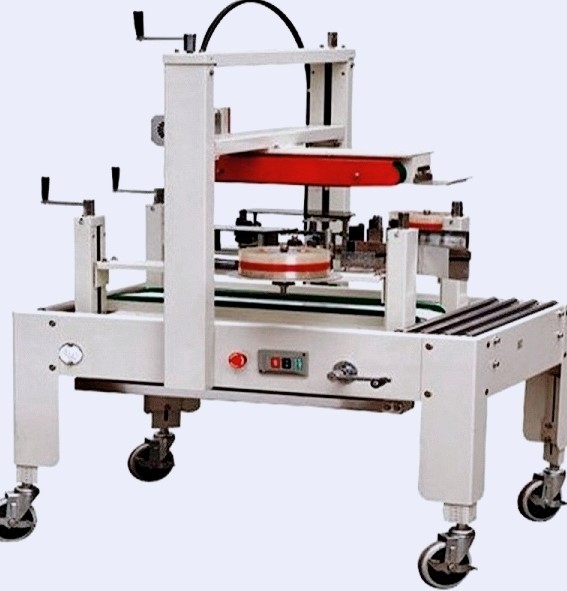

TIE-FX25 Semi-automatic Carton Sealer

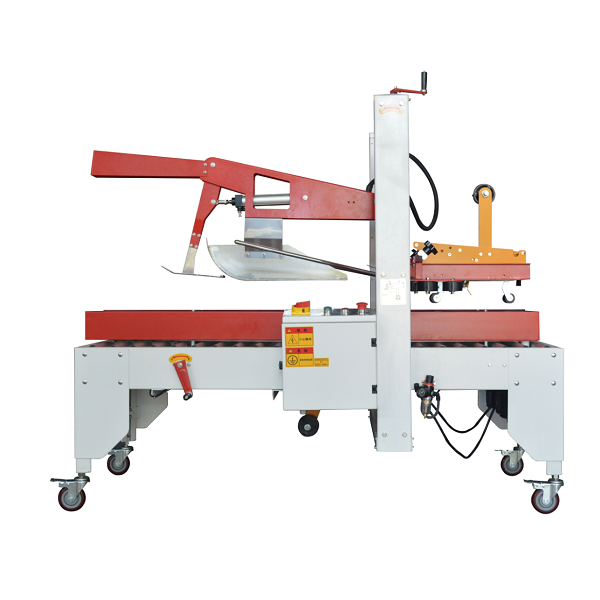

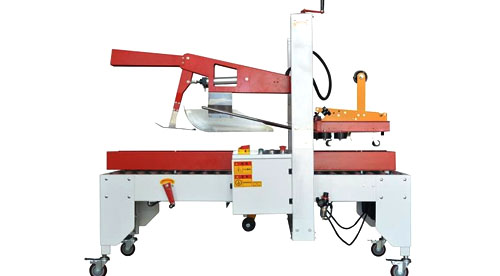

TIE-FX30 Automatic Flap Folding Carton Sealer
▼ Technical Specification
Mode | TIE-FX25 Semi-automatic Carton Sealer | TIE-FX30 Automatic Flap Folding Carton Sealer |
Packing Products | Products Packed In Cartons | Products Packed In Cartons |
Max Carton Size | W500*H500 mm | L 600*W500*H500 mm |
Minimum Carton Size | W150*H150 mm | L 150*W150*H150 mm |
Machine Size | 1100*900*1320 mm | 1770*850*1520 mm (Excluding Front And Rear Roller Racks) |
Speed | 20 M/min | 0-20 M/min |
Power/Voltage | 220V&110V / 0.18 KVA | 220V&380V / 400W |
Tape Width | 36/48/50/60 mm | 48/60/75 mm,Alternative Use |
packaging Form | Upper And Lower Belt Driven Tape Side Seals | Automatic Folding Cover Up And Down Tape Sealing |
