▼ Summary
As high efficient packaging equipment, TIE-ZX15 Linear Coordinate Grasp Carton Filling Machine is designed with airbag grip and manufactured with high automatic operation for carton filling. It can be applied to various sizes of cartons and plastic baskets.
▼ Features Of Equitments
1. It is specially designed for automatic packaging production lines in such industries as edible oil, condiments, fruit and vegetable juice, carbonated beverage, etc.
2. The main drive adopts servo motor control and PLC control technology with man-machine interface, featured by fast communication capability, powerful diagnosis function and high degree of automation.
3. It adopts side bottle feeding, takes small floor space, simplifies the conveying system before the case packer and reduces investment for the whole line equipment.
4. It adopts linear guide rail translation, with more advanced and reasonable structure, easier and more stable action and less power consumption.
5. It adopts multi-stage pressure reducing bottle feeding, avoiding the occurrence of bottle falling and aligning the bottle grasping head with the product accurately with high stability.
6. Conforming to national safety standards, it is provided with various protection functions. Alarms will be given timely in case of malfunctions and the machine will be stopped for protection.
▼ Equipment Pictures

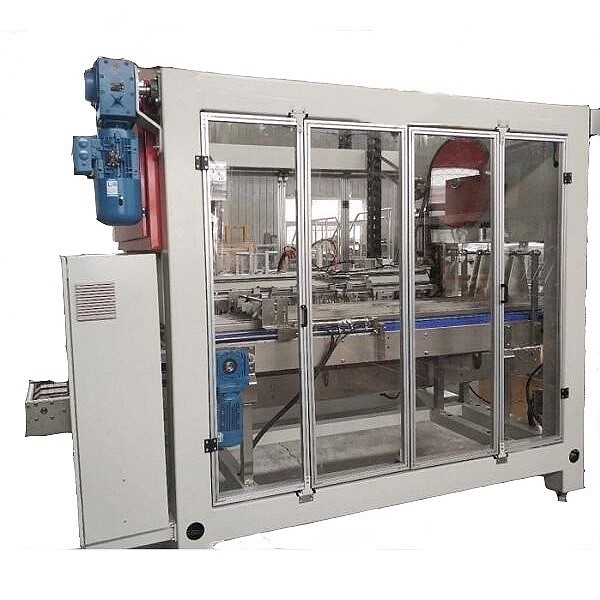

TIE-ZX15 Linear Coordinate Grasp Carton Filling Machine

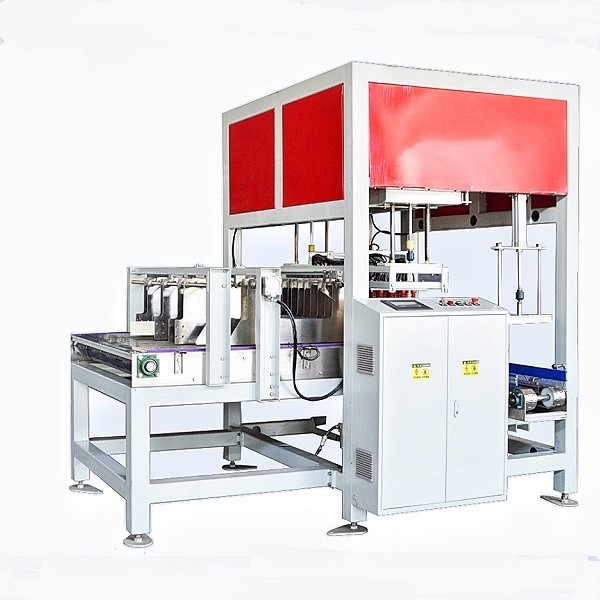

TIE-ZX30 Toothed Wheel Grasp Carton Filling Machine
▼ Technical Specification
Mode | TIE-ZX15 Linear Coordinate Grasp Carton Filling Machine | TIE-ZX30 Toothed Wheel Grasp Carton Filling Machine |
Packing Products | Bottled Products | Bottled Products |
Carton/Plastic Basket Size | General And Special Custom | General And Special Custom |
Machine Size | 1200×1600×2300 mm | 1200×1600×2300 mm |
Speed | 10- 13 Cartons/min | 13- 15 Cartons/min |
Power/Voltage | 380V / 5.5 kW | 380V / 6 kW |
Layer Number | First Floor/Second Floor | First Floor/Second Floor |
Working Air Pressure | 0.4 - 0.6 Mpa | 0.4 - 0.6 Mpa |
Air Consumption | 30 NL /min | 30 NL /min |
Packing Form | Plastic basket/carton | Plastic basket/carton |
