  • High-Speed Automatic PET Bottle Blow Molding Machine
    Mobile: +86-18018112666
    Whatsapp: +86-18018112666
    E-mail: gemma@tiemachinery.com

    Share to:

    Product Details

    ▼ Summary

    High speed automatic bottle blowing machine has the advantages of high production, intelligent manufacturing and energy saving.


    Features Of Equipment

    1. Higher Production Capacity, Smaller Machine.

    Fully electric models for high-speed and stable operation, precise positioning, bottom mold connection for precise control of preform forming.

    2. More Intelligent And Efficient Production Equipment.

    This automatic smart production equipment can reduce manual operations to a minimum, while its smart designs ensure uninterrupted and more efficient production at the same time, including multiple security devices to ensure smooth preform infeed for continuous production without interruption, and efficient transfer system, heating system for lower energy consumption and pollution.

    3. Heating System with Higher Efficiency.

    The enhanced high-power heating lamp has a 20% increased heating efficiency, and is equipped with cooling devices to prevent neck deformation.

    4. Easy Maintenance Structure.

    Spindle system adopts right-side up heating, which provides less moving parts comparing to flip-type design. This gives less chance for component failure and machine down time.

    5. Lower Production Costs.

    The upgraded air recovery system can save up to 50% gas consumption as compared to previous generation models. When combined with the upgraded heating efficiency, the electricity consumption of the machines is greatly reduced by 30%, significantly lowering production costs.

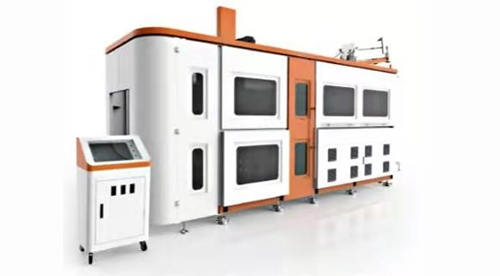

    ▼ Equipment Pictures



    ▼ Technical Specification

    Model

    Unit

    TIE-H6C

    TIE-H8C

    Molding

    Clamping force

    kg

    60000

    72000

    Clamping stroke

    mm

    130

    130

    Stretching stroke

    mm

    320

    350

    Bottom stroke

    mm

    50

    50

    Cavity pitch

    mm

    120

    120

    Number of cavity


    6

    8

    Container

    Max container volume

    ltr

    1.6

    1.6

    Neck diameter range

    mm

    40

    30

    Max container diameter

    mm

    95

    105

    Max container height

    mm

    320

    320

    Carriage unit

    pcs

    126

    162

    Theoretical Output

    bph

    9000

    18000

    Electrical System

    Total power

    kW

    48

    78

    Heating power

    kW

    43

    70

    Max.heating power

    kW

    108

    108

    Air System

    Operating pressure

    kg/c㎡

    7

    7

    Air consuming

    ltr/min

    1000

    1000

    Blowing pressure

    kg/c㎡

    35

    35

    Air consuming

    ltr/min

    8000

    9100

    Chiled Water

    Operation pressure

    kg/c㎡

    4

    4

    Temperature

    10-12

    10-12

    Consuming

    kcal/hr

    12000

    37875

    Flow rate

    ltr/min

    60

    160

    Cooling Water

    Operation pressure

    kg/c㎡

    2-4

    2-4

    Temperature

    30

    30

    Consuming

    kcal/hr

    54000

    104000

    Flow rate

    ltr/min

    150

    347

    Machine

    Machine size(W*D*H)

    mm

    6100*1900*2600

    6600*1900*2600

    Machine weight

    kg

    6500

    10000
